Summary of the armament of the M36 “Jackson” tank destroyer from the M36B1 technical manual TM 9-748: 90-mm Gun Motor Carriage M36B1, War Department Technical Manual, U.S. War Department, Washington D.C., January, 1945.
ARMAMENT CHARACTERISTICS
a. The armament on the 90-mm Gun Motor Carriage M36B1 is employed chiefly against enemy tanks and other ground objectives. The 90-mm Gun M3 is mounted in the turret. The turret can be traversed 360 degrees manually or by a hydraulic traversing mechanism. The 90-mm gun can be elevated 30 degrees and depressed 10 degrees.

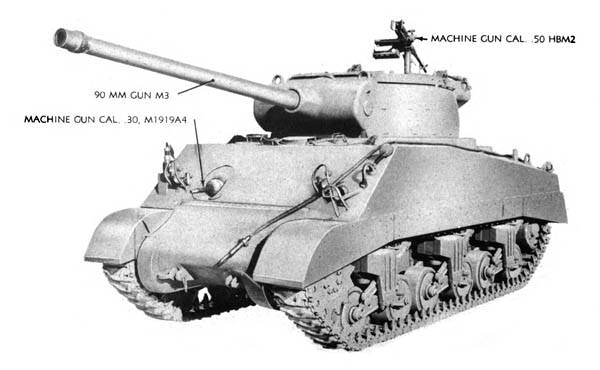

90-mm Gun Motor Carriage M36B1 – Three-quarter Right Front View
b. The cal. .30 machine gun in the front of the gun motor carriage on the right side is elevated and depressed manually, and fired by a conventional trigger. Refer to FM 23-50 for complete information on its operation.

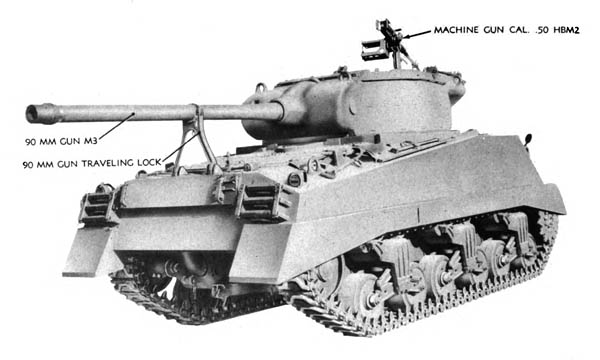

90-mm Gun Motor Carriage M36B1 – Three-quarter Right Rear View
c. The cal. .50 machine gun is employed chiefly against enemy aircraft and is elevated and traversed manually, and fired by a conventional trigger. The machine gun can be traversed independently of the turret. Refer to FM 23-65 for the complete information on its operation.

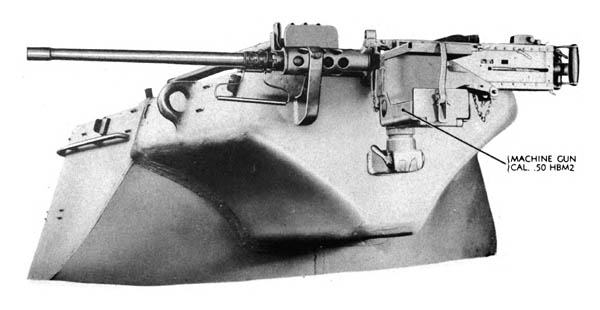

Cal. .50, HB, Machine Gun – Stowage Position
