Me 262 and Me 163 Aircraft Recognition

Recognition features for the German Me 262 and Me 163 aircraft from “Antiaircraft Artillery Notes,” HQ ETO, No. 8, December 1944:

SUBJECT: Aircraft Recognition — Me 262 and Me 163
SOURCE: AA Section, Headquarters, Twelfth Army Group

Of the jet-propelled planes now being operated by the German Air Force, two types are appearing over the Army Group area in increasing frequency — the Me 262 and Me 163, both fighters. Provisional drawings and descriptions of both those types appeared in Twelfth Army Group AAA Notes Nos. 2 & 3. German documents captured recently by Ninth US Army included silhouettes of the Me 262 and Me 163 prepared September 1944 by the High Command of the Luftwaffe; these are reproduced in Appendix I and II of this issue. It should be noted that dimensions differ very little from those given in previous publication, but certain recognition features are considerably different.

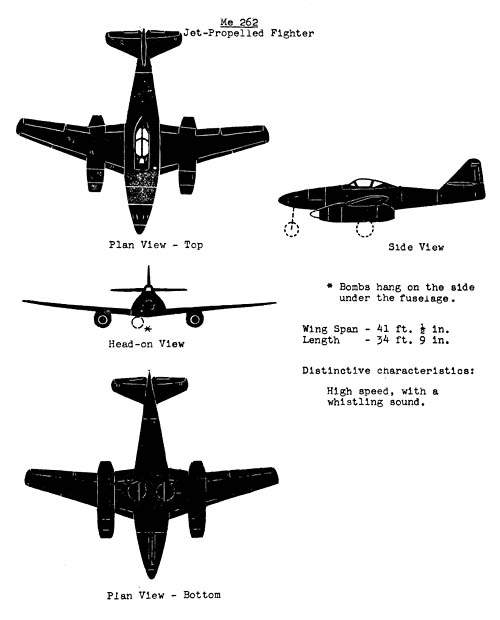

Me-262 Jet-Propelled Fighter


Me-163 Rocket-propelled Fighter
