"Germans Disguise Panthers" from Tactical and Technical Trends

The following U.S. intelligence report on German Panthers disguised as U.S. M10 tank destroyers during the Battle of the Bulge is taken from Tactical and Technical Trends, No. 57, April 1945.

[DISCLAIMER: The following text is taken from the U.S. War Department publication Tactical and Technical Trends. As with all wartime intelligence information, data may be incomplete or inaccurate. No attempt has been made to update or correct the text. Any views or opinions expressed do not necessarily represent those of the website.]

Germans Disguise Panthers
Cleverly Imitate M10 Gun Carriage

Investigation of four German Panther tanks knocked out in the Malmedy area in the December breakthrough in Belgium revealed that the tanks were carefully and cleverly disguised as U.S. M10 gun motor carriages.

After inspecting the tanks and realizing the amount of time, work, and materials involved in order to imitate the appearance of the M10, Ordnance intelligence investigators expressed the opinion that these disguised tanks, used in the proper tactical situation and at the proper time, would have caused considerable damage.

Because the false vehicle numbers of the tanks knocked out were B-4, B-5, B-7, and B-10, investigators concluded that at least ten similarly disguised tanks might have been in action.

Inside the one tank which was not blown up too badly to be inspected were found items of U.S. clothing such as a helmet, overcoat, and leggings. To heighten the deception, U.S. stars were painted on both sides and also on the top of the turret, the entire tank was painted O.D., and U.S. unit markings were painted on the false bow and rear.

In disguising the Panther the distinctive cupola was removed from the turret and two semicircular hatch covers were hinged in its place to the turret top in order to cover the opening. In addition, it was necessary to remove extra water cans, gas cans, the rammer staff container, and other external accessories.

The tank then was camouflaged or disguised with sheet metal, that used on the turret and upper bow being three twenty-seconds of an inch thick and that on time sides of the hull being nine sixty-fourths of an inch thick. The lower part of the false bow was thicker, possibly made of double plates. To accomplish the deceptive modifications, which pointed to at least fourth or fifth echelon alterations, the work probably was done by maintenance units rather than at a factory. The work probably was divided into four sections: turret, bow, rear, and sides.

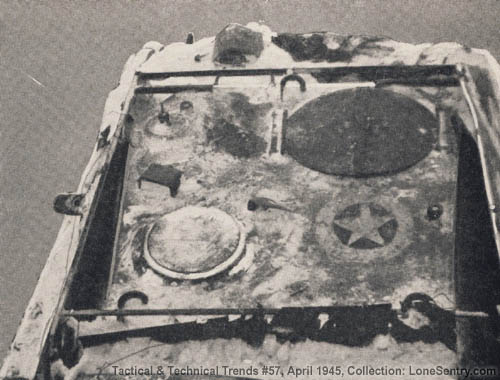

[Top view of Panther tank disguised as U.S. M10 gun carriage, showing hatch covers used in place of cupola.]
Top view of Panther tank disguised as U.S. M10 gun carriage, showing hatch covers used in place of cupola.

Turret Changes

The turret was disguised by using five pieces of sheet metal, two of which were cut to resemble the distinctive sides of the M10 turret and then were flanged on the edges, bent to shape, and stiffened with small angle iron. The gun shield was carefully formed from another sheet to the exact shape of the M10 shield, and a hole was made to the right of the gun hole in the shield for the co-axial M.G. 34, a hole which does not exist in the M10 shield. Two pieces of sheet metal made up the rear of the turret, one representing the bottom slant surface of the rear and one representing the counterweight. The pieces representing the sides and rear were joined together and braced with angle iron, and the whole was attached to the turret. The false gun shield was attached to the Panther gun shield, and all the lifting rings, brackets, extra-armor studs, etc., found on the M10 turret were carefully duplicated and welded to the false turret.

[Left front view with turret reversed. Note false final-drive housing at bottom of bow and false side apron.]
Left front view with turret reversed. Note false final-drive housing at bottom of bow and false side apron.

False Bow

Approximately four pieces of sheet metal, shaped to imitate as closely as possible the contours of the M10 bow, made up the false bow, necessary because the Panther bow is bulkier than the M10. The false bottom was shaped to give the characteristic appearance of the front drive sprocket housing of the M10, and the top was shaped carefully and various component pieces attached to the front of the tank. All the brackets, lifting rings, towing devises, etc., of the M10 bow were also imitated. A square opening was cut in the false bow to permit the use of the bow M.G. 34, but a removable cover attached with a small chain was made for this opening.

[Front view showing plate over machine-gun opening, false lifting rings and brackets, and markings.]
Front view showing plate over machine-gun opening, false lifting rings and brackets, and markings.

False Rear and Sides

The false rear was made of sheet metal. It was a faithful duplicate of the M10 rear except for two holes to permit the twin exhaust elbows of the Panther to protrude.

An attempt was made to imitate the skirting armor of the M10 which appears to hang lower than the side armor of the Panther and is bevelled in at the bottom. A long flat strip of sheet metal was attached to the sides parallel to the ground, and a vertical sheet strip was attached at right angles to this strip to give the appearance of low skirting armor.

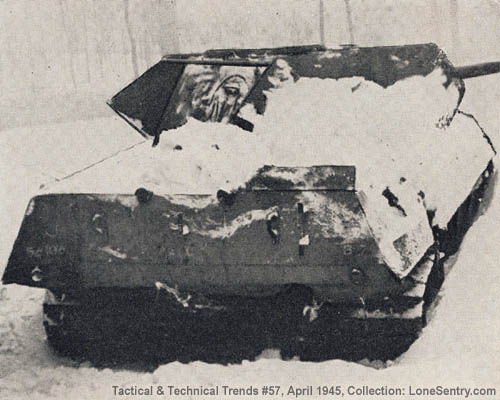

[Rear view showing false tail plate. Note exhausts and dummy fittings.]
Rear view showing false tail plate. Note exhausts and dummy fittings.

Features which aid in recognizing disguised Panthers and which cannot be camouflaged easily are:

1. The distinctive Panther bogie suspension. (The M18 motor gun carriage now has a somewhat similar suspension.)

2. The muzzle brake on the 7.5 cm Kw.K. 42.

3. The wide and distinctive track of the Panther tank.
