MISCELLANEOUS (German)
Field Patching of Armored Troop Carriers, Map Signs for Obstacles

1. FIELD PATCHING OF ARMORED TROOP CARRIERS (HALF-TRACKED)

In the field the Germans have made use of an unusual type of patch to cover holes pierced in the armor of their half-tracked armored troop carriers.

The plates are secured by conical-headed bolts inserted through the holes and—in the case of patches examined to date—held by steel strips at the back (see fig. 1). Apparently the plates have been designed especially for this purpose. Their peculiar shape permits them to be fitted anywhere on the armor service.

The plates are drilled in five places; the three top holes are countersunk, while the lower two are not. It is worth noting that specimens of patching observed, the fixing bolts did not fit into the countersinks. Although the reason for the three countersunk and two plain holes is not entirely clear, it is quite possible that one plate is meant to serve as a background or securing plate—hence the two plain holes. This theory seems borne out by the fact that the securing bars which have been observed to date appear to have been makeshift jobs.

[German Field Repair Patch for Half-track Armor]

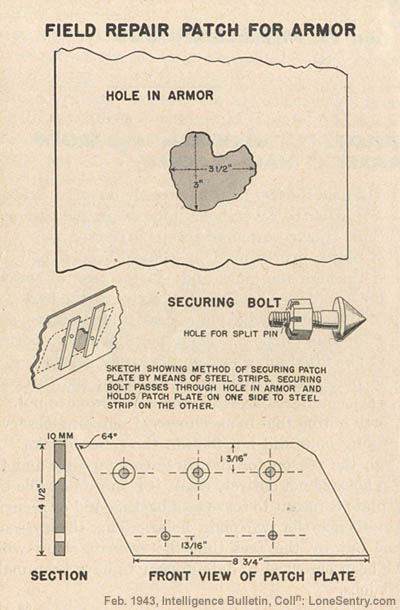

Figure 1

2. MAP SIGNS FOR OBSTACLES

The following symbols, which the American soldier may find on German maps, are taken from a German Army document.

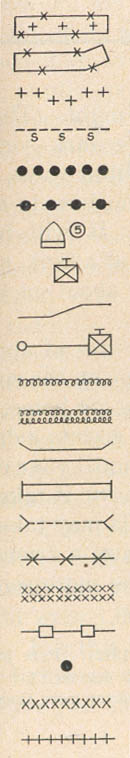

[Figure 2: German Map Signs for Obstacles]
Close spaced A T minefield
Symmetrically spaced minefield
Disposed A T mines
Dummy minefield
Anti-personnel minefield
Trip wire mines
Air bombs (5 in number)
Exploder point
Firing lead
Observed mines with exploder point
Single concertina
Triple concertina
Marked lane
Concealed lane
Patrol lane
Plain wire fence
Wire obstacle in depth
Stone heaps and cans marking limits
Concealed charges
Apron or double apron
Trip wire
