Henschel Hs 126

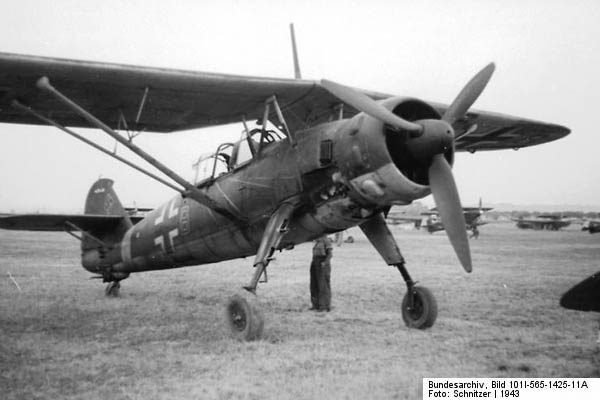

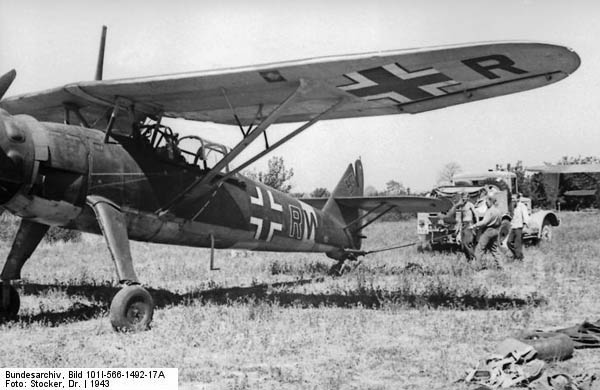

Henschel Hs 126 -- German Luftwaffe reconnaissance and observation aircraft
 |
| Henschel Hs 126 |
 |
| Henschel Hs 126 |
Henschel Hs 126 - Characteristics
| Crew | 2 | |
| Length | 10.9 m (35 ft 7 in) | |
| Wingspan | 14.5 m (47 ft 7 in) | |
| Height | 3.8 m (12 ft 4 in) | |
| Wing Area | 31.6 sq m (340 sq ft) | |
| Empty Weight | 2,030 kg (4,480 lb) | |
| Loaded Weight | 6,820 lb (3,090 kg) | |
| Engine | Bramo 323 9-cylinder radial engine, 634 kW (850 hp) | |
| Maximum Speed | 356 km/h at 3,000 m (221 mph at 9,850 ft) | |
| Combat Radius | 998 km (620 mi) | |
| Ceiling | 8,530 m (28,000 ft) |
Variants: Hs 126 A-0, Hs 126 A-1, Hs 126 B-1
