10 cm Nebelwerfer 35: Smoke Mortar

German 10 cm Nebelwerfer: Smoke Mortar

The 10 cm Nebelwerfer, standard smoke and chemical mortar in use by the German Army, has also been used, to some extent, by airborne troops. It is serviced by five men and transported on a two-wheeled handcart.

Although the standard ammunition for the weapon is a 16-pound smoke shell designated Wurfgranate 35, a 19-lb. high explosive shell, Wurfgranate 40 is also used.

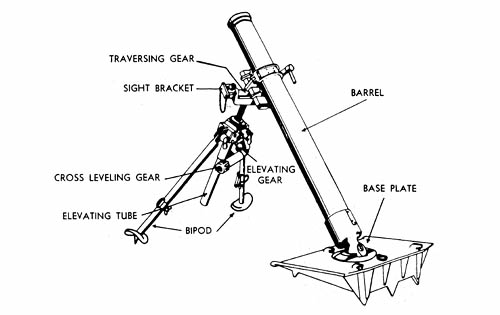

The mortar, which is merely a heavier and larger model of the German 8 cm mortar, consists of a barrel, bipod, and baseplate constructed on the usual mortar lines. The traversing gear, however, is unusual in that the traversing screw is housed in a sleeve which is supported by the two ends of a box-shaped yoke secured to the top of the elevating screw.

SPECIFICATIONS

Caliber        105 mm (4.1 ins.)
Weight in action228 lb.
Weight of barrel72 lb.
Weight of bipod73 lb.
Weight of baseplate83 lb.
Method of operationMuzzle loaded; percussion fired
Maximum range3,300 yds.*
Rate of fire12-15 rds./min.
AmmunitionH.E. and Smoke
Weight of shell16 lb. (Wurfgranate 35) Smoke
  19 lb. (Wurfgranate 40) H.E.
Transport2-wheeled handcart

*Not verified.

German: p. 110.1
